CZWH301

Description

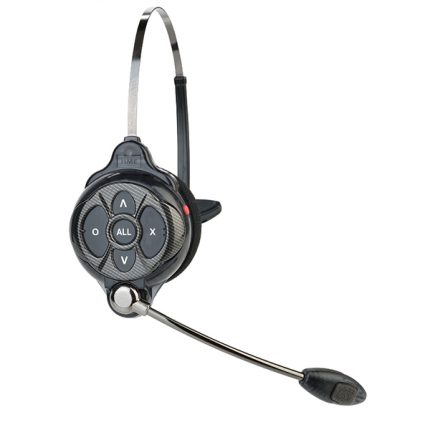

CZWH301 All-In-One wireless single ear headset with 2 BAT50 batteries. For use with MB300 and MB300ES base stations only. Uses AC50 battery charger. Instruction manual included. This model headset replaces the former WH300.

SPECIFICATIONS:

• Two Channels

• 2.4 GHz frequency range

• 7KHz wide band audio

• 2-wire and 4-wire bridging on the same system

• 2-wire auto-nulling

• Lost packet concealment

• Supports up to 15 belt packs and/or wireless headsets

• Single or dual channel operation

• Up to 12 hours battery life

OPERATION

Single-channel operation allows any 4 belt pack and/or all-in-one headset users to engage in hot mic, full-duplex communication. In dual-channel operation, three users may be in duplex hands free talk mode with up to 12 additional users in listen-only mode.

DURABILITY

The new “All-in-one” headset has a rugged, reinforced casing and long-lasting keypad with no mechanical switch. The “All-in-one” headset model has lightweight, balanced design and wire-free steel headband for all-day comfort.

BATTERY LIFE & CHARGING

Using the new smaller BAT50 Li-Ion battery, this new headset has up to 12 hours of battery life. The AC-50 charges up to 4 BAT50 batteries at a time and includes storage slots for 4 additional batteries. Charging time is 2.5 hours.

Specifications

General

Frequency Range:
2400 MHz – 2483.5 MHz Antenna: Internal

Frequency Response:
200 Hz to 3.5 kHz Transmit Power: 100mW burst

RF Sensitivity:
<–90dBm w 10^-3 BER

Battery Requirements:
3.6V lithium ion, rechargeable

Battery Life:

• Hands-free – up to 14 hours
• PTT – up to 20 hours

Temperature Range:
32-122°F (0-50°C)

Weight:
5.7 oz (.16 kg) with battery

Microphone:
Electret

Headset Output:
160mW into 32Ω

Controls:
Power, Volume-up _., Volume-down T, O, X, ALL

Indicators:
Transmit LED (red in defense / green in offense) Power LED (red/green)
