PTSS and PTSS-K Portal Temperature Scanning Systems
Visible & Efficient Real-Time Thermal Temperature Monitoring Systems
The monitoring of human temperature while minimizing contact will be an ongoing concern in the coming weeks, months, and possibly even years. It will play a huge role in designing camera surveillance systems moving forward.
As the U.S. comes through the COVID19 pandemic and businesses begin to reopen, customers and visitors will feel more comfortable if they see a visible real-time monitoring system in place to prevent anyone who might have a fever from entering the facility.
ComtronICS/CobaltAV is proud to partner with Optiview in bringing you a family of turnkey non-contact systems which offer highly efficient temperature monitoring solutions designed for venues of every size. The PTSS is suited for higher volume venues. The PTSS-K is intended for lower volume areas.
True Temperature Monitoring is here.
There are many variations of thermal cameras available today, but most do not accurately display temperature readings in real time, with information to allow for an effective actionable response. PTSS and PTSS-K are a complete human body temperature monitoring solution, customized for your area, which can be set up both inside or outdoors under protection from the elements.
PTSS High Volume Portal Temperature Scanning System
PTSS is designed for high volume areas where many people are continuously arriving and leaving. It is ideal for crowded areas where the efficient measuring of multiple people in a short period of time is of vital concern. The camera and detection module are set up so as individuals pass between the two units, their temperature is read quickly and accurately. The person is either allowed to continue on their way, or an alarm sounds and lights flash to alert that they have been identified as having a fever to allow for additional screening.
PTSS is a complete human body temperature monitoring system containing a hybrid thermal camera/temperature detection module, and a Deep Learning NVR. The system is capable of highly accurate body temperature detection +/-0.5°C (0.9°F), offering an efficient and contact-free solution.

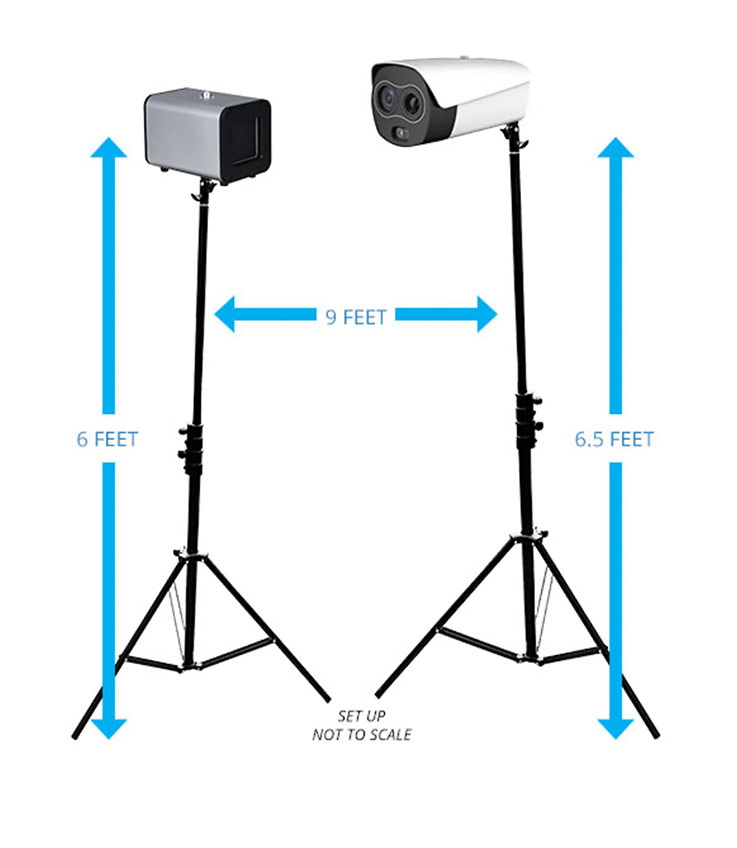

Easy to set up, the PTSS can be installed indoors or under a canopy outdoors, avoiding sunlight, wind and rain. The camera and temperature detection processor are set up on tripods and connected to the NVR.
System Highlights
- Recorded chronology and real time monitoring supported.
- Alarm alert at high and low temperatures.
- Defines the target area.
- Notification by email, audible alarm, white light, snapshot.
- Deep Learning NVR tracks daily metrics, capturing every face
- Searchable by person or clothing
Click/tap image to enlarge
Key System Components
IPTHB8-TC
Hybrid Dual Lens Thermal Camera
- Athermalized Lens
- Visible 2 MP 8mm Lens PoE
- Thermal 256 x 192, 7mm
- White Light & Audio Alarm
- Monitor up to 15 people per view
- Face Detection
IPTH-C
Temperature Control Processor
- Processes human body temperature
- Includes power adapter
NVR16P16-2DL
Deep Learning NVR
- 16 channel 1U 16PoE NVR
- Statistical reporting/exporting
- 4 channels mask detection
- 4 channels face recognition
PTSS Applications
- Theme Parks
- Museums
- Schools & Campuses
- Large commercial buildings
- Airports
- Arenas & Stadiums
- Schools & Campuses
- Hotels & Conference Centers
- Public Transportation
- Hospitals & Nursing Homes
- Large retail & grocery
Download printable PDF information about the PTSS High Volume Portal Temperature Scanning System.
For more information, call or email David Fried: 859-489-6241 (Direct)
PTSS-K Low Volume Portal Temperature Scanning System
PTSS-K (Portal Temperature Scanning System-Kiosk) is a turnkey solution that detects and notifies of human temperature readings for lower traffic areas. Our kiosk system will detect human temperatures with an accuracy range of +/-0.5°C (0.9°F). Install indoors in several configurations, or deploy at an outside entry that is protected from the elements, to monitor all entrants.
PTSS-K is a complete human body temperature monitoring solution containing a customized thermal camera paired with a kiosk solution and a Deep Learning NVR. The kiosk may be a wall mount, desktop unit or a floor mount.
Easy to Set Up

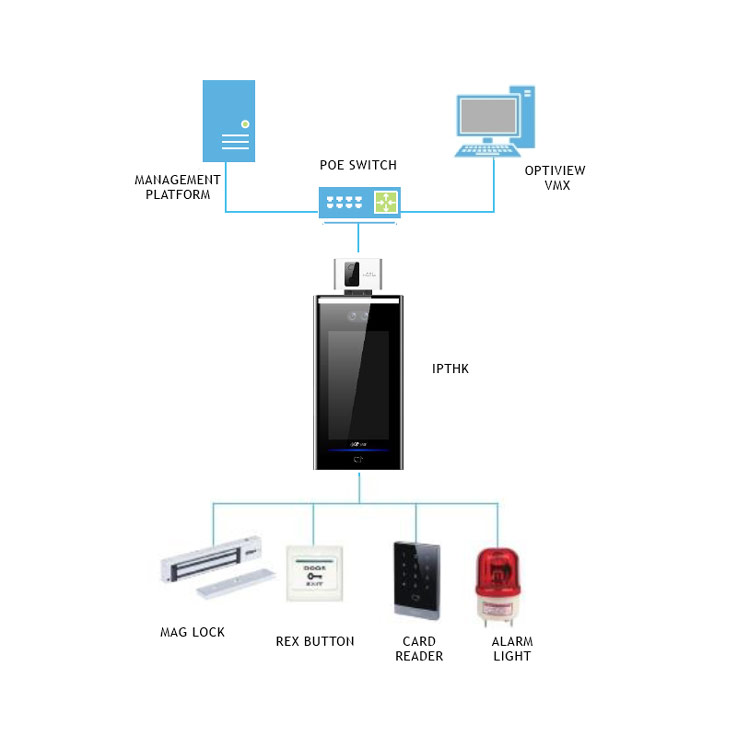

Regardless of the mounting solution you choose, the kiosk system is set up indoors or under cover, safe from the elements. It can be mounted on the wall, set on a desktop, or be a freestanding floor mount; then connected to the NVR and monitored in real time. Notification are sent through the Optiview VMX and a License.
The PTSS-K Kiosk system is perfectly suited for lower volume areas where the traffic is at a slower speed. The IPTHK camera is able to “read” 1 person every 0.2 seconds and is accurate within 0.5˚C (0.9˚F). The kiosk system can detect both temperature readings and whether or not the person is wearing a mask.
The IPTHK thermal camera must be set up at 5′ above ground level, aimed at the checkpoint area with a “reading area” of 1′ up to 6’5″ in distance and up to 7’8″ in height.
Click/tap image to enlarge
Key System Components

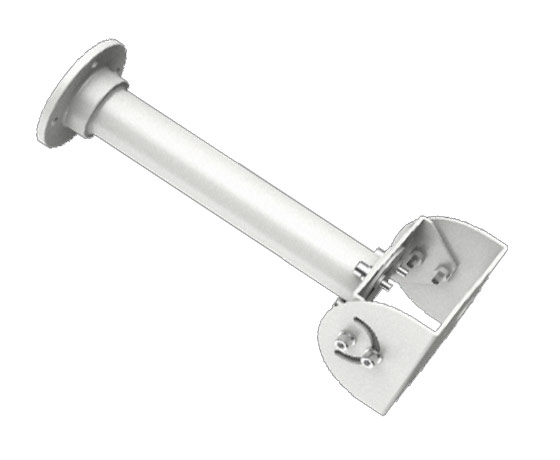

IPTHK
Wall Mount
IPTHK-D
Desk Mount
IPTHK-F
5′ Floor Mount
NVR16P16-2DL
Deep Learning NVR
- Track daily metrics
- Records video clips of every face
- Search by person or vehicle
- Search by clothing color/style
PTSS-K Applications
- Fitness Centers
- Spas & Nail Salons
- Boutiques & Small Retail
- Restaurants & Bars
- Local Banks
- Office Buildings
- Nursing Homes
- Lobby Areas
- Primary Care Doctors’ Offices
- Dentists & Eye Doctors
- Small Places of Worship
Download printable PDF information about the PTSS High Volume Portal Temperature Scanning System.
For more information, call or email David Fried: 859-489-6241 (Direct)
Important: Medical Disclaimer
PTSS/PTSS-K is not a medical device, therefore it is not intended for use in the diagnosis, cure, mitigation, treatment, or prevention of any disease or other medical condition.
